Industrial Mini PC Solutions

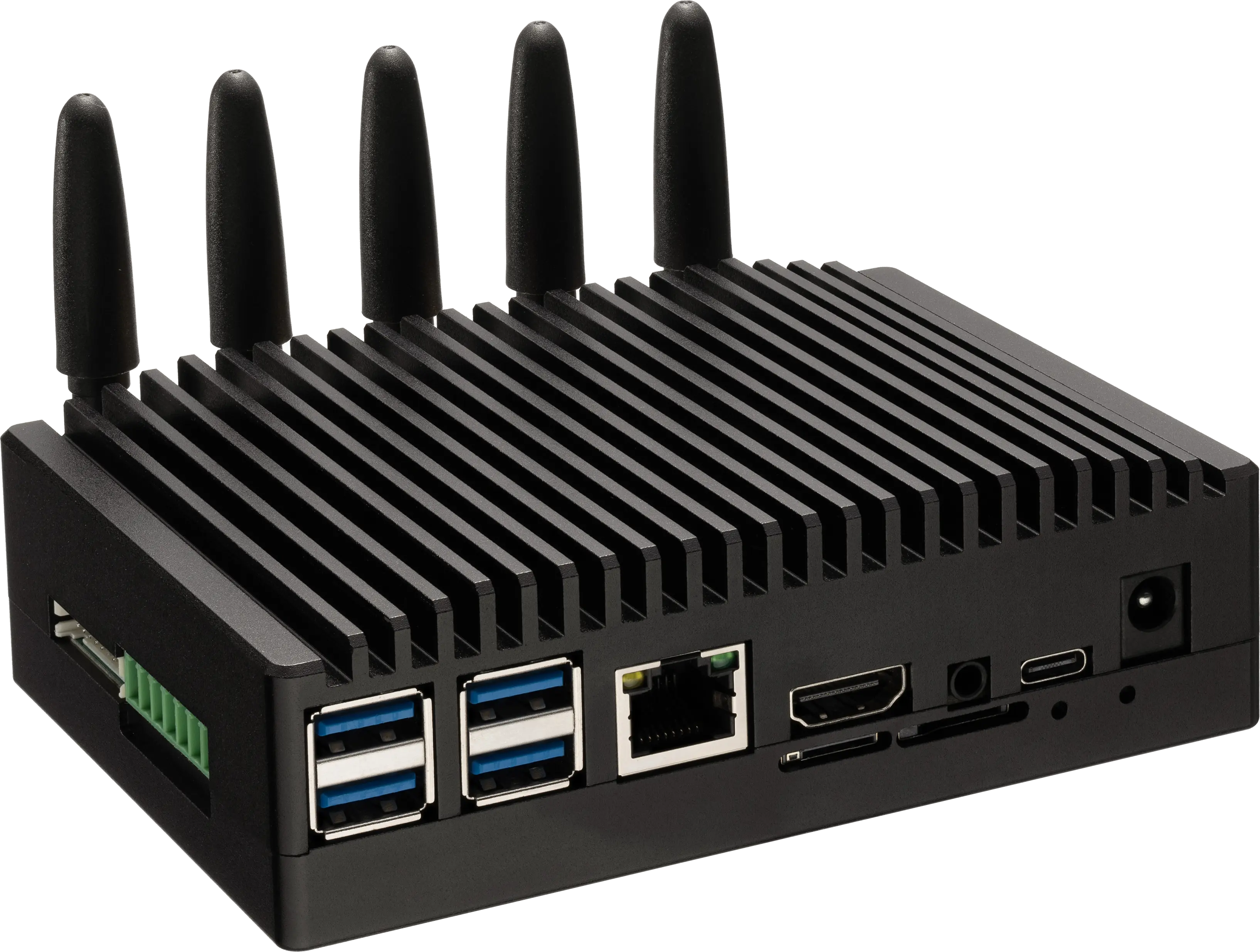

Industrial Mini PC

Our industrial mini PC is built with a rugged, industrial-grade

enclosure, ensuring exceptional dust-proof and anti-interference

protection. Featuring a wide range of connectivity options for plug-

and-play functionality, it supports versatile applications in

demanding environments.

Designed for harsh industrial conditions, this mini PC guarantees

stable operation efficient heat dissipation, and low power

consumption. It's compatible with powerful processors such as

RK3288, RK3566, RK3568, RK3399, RK3588, as well as

Qualcomm MST680, making it the perfect solution for industrial

automation, IoT applications, and embedded systems.

Products features:

Provides high-quality HDMI display output
Rich interfaces for flexible expansion
Various communication methods including Wi-Fi 6/BT/4G/5G/Ethernet
heat dissipation, sturdy structure.
High computing power, meeting lightweight AI computing requirements
Industrial-grade lifespan

INQUIRY

OVERVIEW

SPECIFICATION

Flexible Chip Solutions

The Industrial Mini PC, powered by Rockchip and based on ARM architecture, is a passively cooled ARM industrial PC, ideal for machine vision, factory automation, and other applications.
With optional chips like RK3288, RK3566, RK3568, RK3399, RK3588.

Rich interfaces

Compatible with both Android and Linux systems and features a plethora of peripheral interfaces, including 2*1000Mbps Ethernet ports, HDMI out, HDMI in, USB, RS232, RS485, CAN, GPIO.
It supports 2.4GHz/5GHz Wi-Fi 6 and Bluetooth 5.0, and offers M.2 expansion for 4G/5G communication, ensuring seamless communication.

Sturdy structure, excellent thermal conductivity

Aluminum alloy material, compact and exquisite structure

Multi-Scenario Applications

Design enables connection to many external devices and flexible deployment in fields like edge computing, cloud servers, and intelligent NVRs.
As industry technology advances, the industrial control market, including industrial robots, automation control, drones, etc., will surely see a rise in demand for products with AI computing capabilities.

Model Name		MST3568XB PLUS	MST3399XB PLUS	MST680XB PLUS	MST3588XB PLUS
SOC	CPU	ARM Rockchip® RK3568, Quad-Core Cortex-A55 up to 2.0GHz	ARM Rockchip® RK3399, Dual-Core Cortex-A72 up to2.0GHz+Quad-Core Cortex-A53 up to 1.5GHz	ARM Senarytech®VS680,Quad-Core Cortex-A73 up to 2.1GHz	ARM Rockchip® RK3588, Quad-Core Cortex-A76+ Quad-Core Cortex-A55 up to 2.2-2.4GHz
	Architecture	ARM
	GPU	G52 2EE GPU Support OPENGL ES 1.1/2.0/3.2,OPENCL 2.0 VULKAN 1.1	MALI-T860 GPU Support OPENGL ES1.1/2.0/3.0/3.1,OPENCL	OpenGL ES1.1/2.0/3.0/3.1/3.2，DirectFB/OpenCL™1.2/ Vulkan® 1.1	MALI-G610 GPU Support OPENGL ES3.2,OPENCL 2.2,VULKAN 1.1
	NPU	1TOPS AI computing power	/	6.75TOPS AI computing power	6TOPS AI computing power
	DDR	2G/4G/8G	2G/4G	4G	4G/8G/16G
	eMMC	8G/32G/64G/128G,up to 256G
	OS	Android11 ubuntu18.04	Android7.1 ubuntu18.04	Android12 ubuntu20.04
	Audio in/out	Amplifier 8Ω 5W loudspeaker/3.5mmearphone out，1* MIC input
	HDMl intput	1*1080p(option)	1*1080p(option)	1*4K 3840x2160(option)	1*1080p(option)
	HDMl output	Highest resolution 4K 3840x2160 Support dual display
	Voltage	DC12V 2A (optional 36V)
Peripheral interface	CAN	2*CAN	/	/	2*CAN
	Ethernet	2*1000M RJ-45	1*1000M RJ-45	2*1000M RJ-45
	SIM	2* Mini-PCIe 4G or Mini-PCIe 4G+ Mini-PCIe 5G
	WIFI	1*802.11 b/g/n（802.11 ac/ax optional）
	USB 3.0	4*USB3.0
	UART	RS232*1
	UART	RS485*1
	WIFI Antenna	Standard accessories
	TF	1-way self-ejecting TF card（optional）
other		BT,RTC,earphone, Power adaptor/Type-C Download or debug cable/Loud speraker/USB camera optional
TDP		5W	5W	8.5W	8.5W
Ambient temperature		-0°C~60°C	-0°C~60°C	-0°C~60°C	-0°C~60°C
